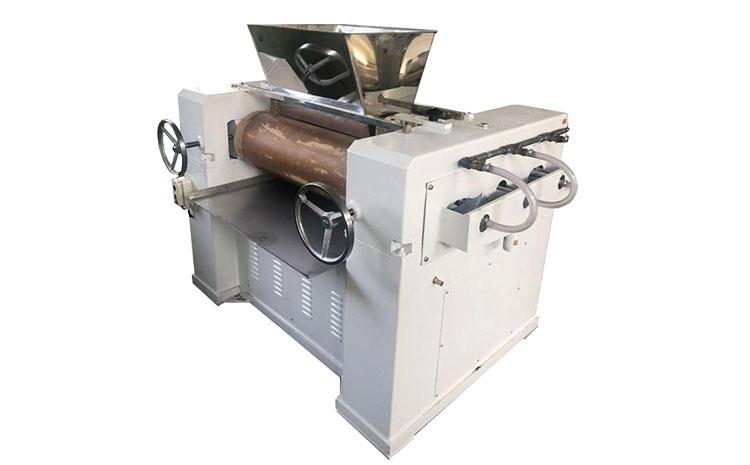

This machine is used for soap refining. Three rolls are horizontally placed with different rotating speeds.
The refining function is achieved by pressing and squeezing force between the adjacent rolls.
The main frame is made of high quality stain structure, strong and solid.
All gears are precisely manufactured and bathed in oil lubricants for long running life with lower noise, less wearing and better reliability.
Rolls are made of special alloy, high hardness, anti-wearing capability.
Specifications:
Capacity: 100-200kg/h
1.Roller diameter:120mm
2.Working face length:200mm
3.Power:3kw
4.Dimensions:525x620x500mm
5.Weight:380kg
Specifications:
Capacity: 300-500kg/h
1.Roller diameter:150mm
2.Working face length:300mm
3.Power:4kw
4.Dimensions:775x820x650mm
5.Weight:600kg
Specifications:
Capacity: 500-1000kg/h
1. Roller diameter：260mm
2. Working face length：675mm
3. Power：7.5kw
4. Dimensions: 1645*1350*1100mm
5.Weight:1200kg
Specifications:
Capacity: 1-2T/h
1. Roller diameter：405mm
2. Working face length：810mm
3. Power：15kw
4. Dimensions：2600*1200*1700mm
5. Weight：5000kg
