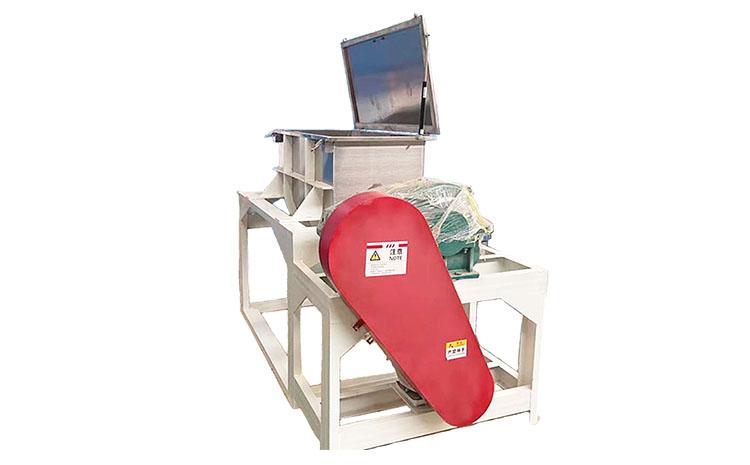

Single shaft two blade type paddle, it is driven by the motor through the gear box and rotates continuously to mix soap noodles, flakes and liquid or solid additives.
After through mixing, soap material are discharged from the bottom discharge gate controlled by pneumatic cylinder.
It can mix soap noodles with perfume, color and additives well, meeting different customers' requirements.
Specifications:
1.Capacity:25kg/batch
2.Motorpower:2.2 kw
3.Dimensions:720*500*900mm 4.Weight:200kg
Specifications:
1.Capacity:50kg/batch
2.Motor power:2.2kw
3.Dimensions:1800*1000*1150mm
4.Weight: 500kg
Specifications:
1.Capacity(Kg):100kg/batch
2.Power (KW):4kw
3.Dimensions:1850*1000*1150mm
4.Weight:500kg
Specifications:
1.Capacity : 200kg /batch
2.Motor power: 5 kw
3.Dimensions:1850*1500* 1150mm
4.Weight: 1000kg
Specifications:
(Automatic Laying-off)
1.Capacity : 50kg / time
2.Cylinder volume：100L
3.Stirring motor:2.2kw
4.Pour motor:0.75kw
5.Dimensions:1350*470*910
6.Weight:242kg
Specifications:
(Automatic Laying-off)
1.Capacity : 150kg / time
2.Cylinder volume：200L
3.Stirring motor:4kw
4.Pour motor:1.1kw
5.Dimensions:1730*670*1095
6.Weight:582kg
Specifications:
(Automatic Laying-off)
1.Capacity : 200kg/ time
2.Cylinder volume：300L
3.Stirring motor:5.5kw
4.Pour motor:1.5kw
5.Dimensions:2100*880*1200
6.Weight: 950kg
Specifications:
(Automatic Laying-off)
1.Capacity : 350kg/ time
2.Cylinder volume：500L
3.Spindle speed：18r/min
4.Pour motor:1.5kw
5.Dimensions:2200*900*1385
6.Weight:1200kg
