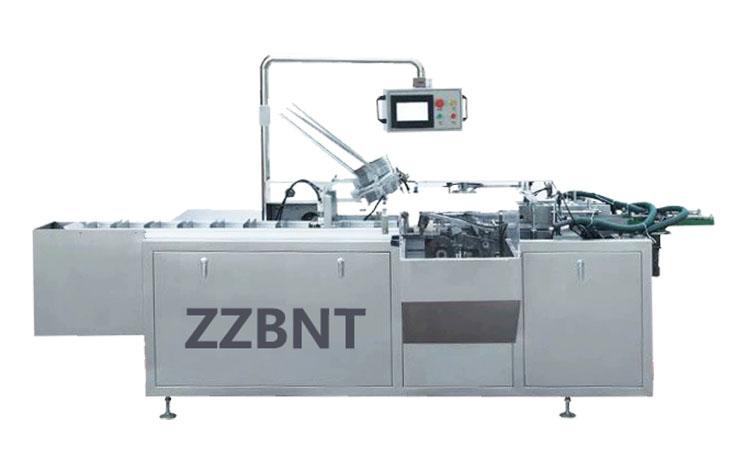

Paper Box Packaging Machine
1. Encasing speed:30-100box/min
2. Box Quality requirement:250-350g/m2(according to its dimensions to confirm)
3. Box Dimensions range(L*W*H):(70-220)mm×(14-90)mm×(14-65)mm special size can custom made
4. Leaflet Quality requirement:60-70g/m2
5. Leaflet Unfolded leaflet specification:(80-250)mm(90-170)mm
6. Leflet fold range:(1-4)fold
7. Compressed air:Working pressure≥0.6mpa
8. Compressed air Air consumption:120-160L/min
9. Power supply:220v 50HZ
10. Motor power:1.5kw
11. Machine dimension(L*W*H):3100*1100*1900mm
12. Machine weight:1500kg
