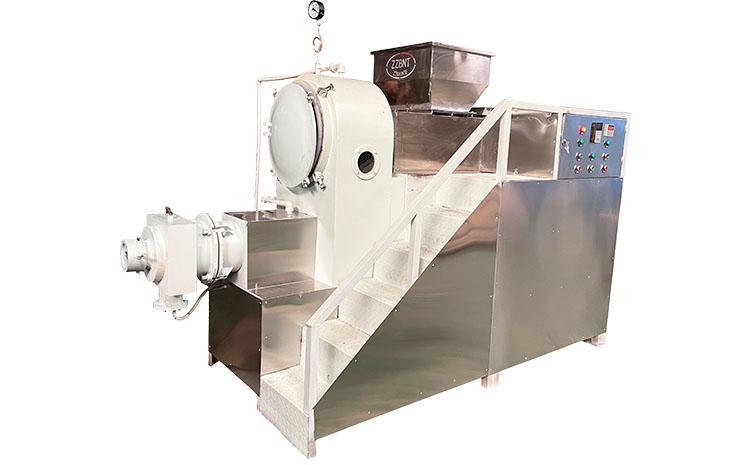

The double-single-screw vacuuming machine is composed of two single-linker machines, each with its own independent closed-speed transmission system.
The machine is made of precision gears. The screw is made of new aluminum alloy material or high quality stainless steel, which is corrosion resistant and durable. All other parts in contact with the soap are made of high quality stainless steel.
The control part can adopt variable frequency or electromagnetic speed regulation, and the production capacity can be adjusted arbitrarily.
Specifications:
1.Capacity:100kg/h-500kg/h
2.Screw rod diameter:160mm
3.Power:5.5kw,under 7.5kw speed adjustable
4.Dimensions: 2900*900*2100mm
5.Weight:1500kg
Specifications:
1.Capacity:500-800kg/h
2.Screw diameter:200mm
3.Power:up7.5kw,under 11kw speed adjustable
4.Dimensions:3500*950*2300mm
5.Weight:2370kg
Specifications:
1.Capacity:1000-2000kg/h
2.Screw diameter:220mm
3.Power:up11kw,under 15kw speed adjustable
4.Dimensions:3900*1000*2150mm
5.Weight:2650kg
Specifications:
1.Capacity:2000-3000kg/h
2.Screw diameter:300mm
3.Power:up15kw,under 22kw speed adjustable
4.Dimensions:4300*1080*2500mm
5.Weight:3350kg
